Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
- Reducer coupling for connecting two pipes of different sizes going in the same direction
- Female National Pipe Taper (NPT) threads on both ends for connection two male threaded pipes of different sizes
- Made from malleable iron for tensile strength
- National Pipe Taper (NPT) threads for creating tighter seals than straight threads
- Galvanized finish resists rust in water, air, and steam applications
| Materials: | Black Heart Malleable Iron according to ISO5922 ANSI/ASME/A197 DIN1692 |
| Standard: | British Standard American Standard DIN Standard |
| Size: | 1/4” – 6” as per ISO49, ANSI/ASME B16.3, DIN2950 |
| Threads: | ISO7/1 ANSI/ASME B1.20.1 DIN2999 |
| Tensile Strength: | ≥33kg/mm2 |
| Elongation: | ≥8% |
| Hardness: | ＜HB150 |
| Test Pressure: | 2.5MPA(25KG/CM2) |
| Working Pressure: | 1.6MPA(16KG/CM2) |
| Shape: | Banded. Beaded. Plain |
| Surface: | Hot dipped galvanized. Black |
| Model: | Elbow, Tee, Socket, Nipples, Union, Bushing, Plug, Caps, Bends, Cross, Round Flange, Reducing Elbow, Reducing Socket, Reducing Tee, Reducing Nipple, Crossover etc. |
| Connection: | Threads(male and female) |
| Application: | Suitable for pipe line connect of water, oil, air, steam, gas. |
| Certificated: | ISO9001, CIQ, ITS, SGS, BV, CCIC. |
| Packing: | Export Carton (+ Pallets if need), Double woven bags. |
| Shipment time: | Within 30days after receiving the deposit. |
| MALLEABLE IRON PIPE FITTINGS DETAILS | ||
| Material | Black heart malleable iron | |
| DIN Standard | Threads : ISO 7/1 | |
| Dimension : ISO 49, DIN2950, EN10242 | ||
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) | |
| Physical property | Tensile strength >>=350mpa, Elongation >=10%, Hardness <=150HB | |
| Testing pressure | 2.5MPa | |
| Working pressure | 1.6MPa | |
| Type | 1. Beaded with ribs. | |
| 2. Beaded without ribs. | ||
| Size | 1/8″,3/8″,1/2″,3/4″,1″,11/4″,11/2″,2″,21/2″,3″,4″,5″,6″. | |
| Surface | Ø Galvanized | |
| Ø Normal black/Shining black | ||
| Series | Heavy, Standard, Medium, Light | |

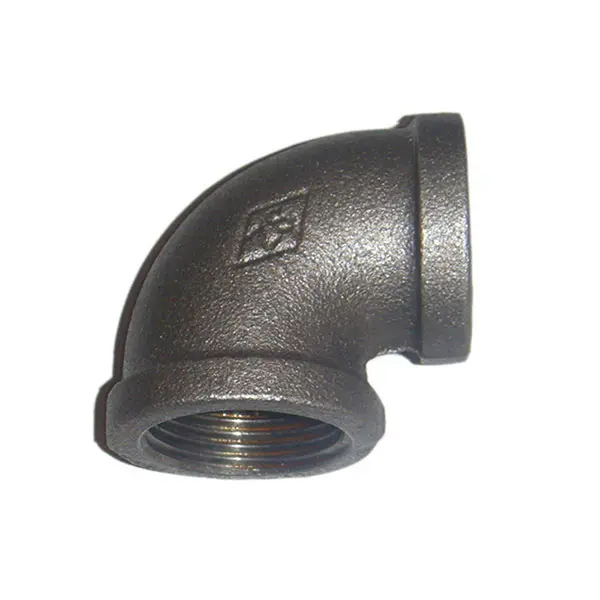

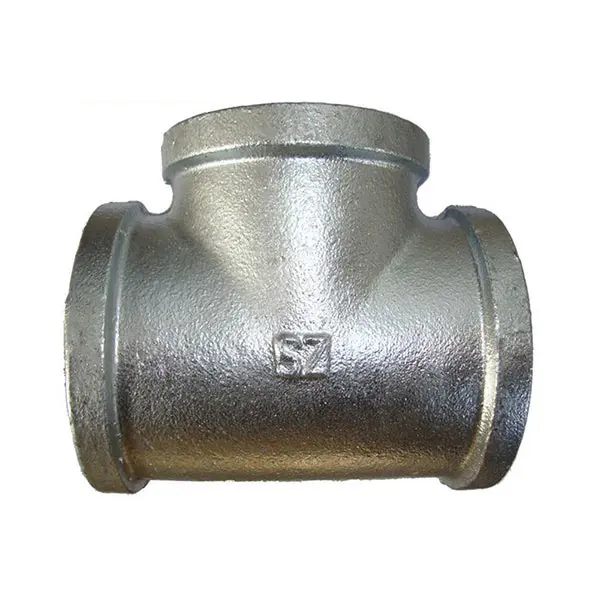

| Model | Elbows, Tees, Crosses, Bends, Unions, Bushings | |

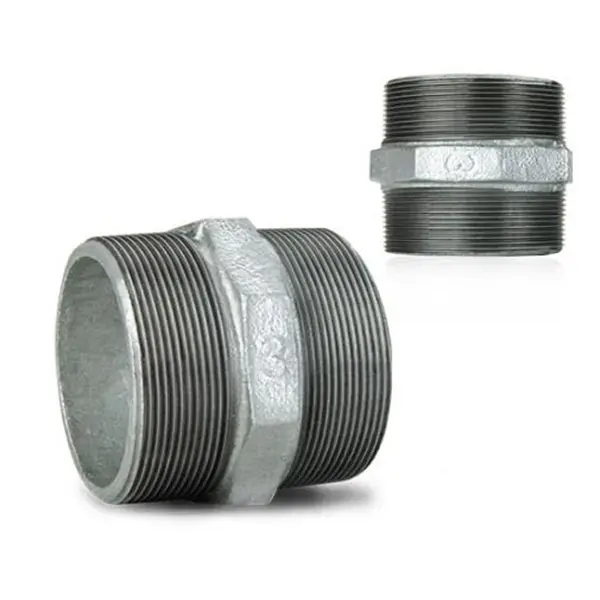

| Lateral Y Braches, Sockets, Nipples, Hexagon/Round | ||
| Caps, Plugs, Locknuts, Flanges, Side Outlet Tees | ||
| Side Outlet Elbows, etc. | ||
| Related products | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Carbon steel butt-welding fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tapes | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Grooved fittings | 12. Sanitary fittings, etc. | |
| Connection | Male, Female | |
| Shape | Equal, Reducing | |
| Certificate | BSI, ANAB, ISO9001,FM | |
| Applications | Suitable for Pipe lines connect of steam, air, gas, oil and so on. | |
| Buyer’s drawings or designs are available. | ||
| Package | 1. Cartons without pallets. | |
| 2. Cartons with pallets. | ||
| 3. Double woven bags | ||
| Or as buyer’s requirements. | ||
| Delivery detail | ||
| According to the quantities and specifications of each order. | ||
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
