| Materials: | Black Heart Malleable Iron according to ISO5922 ANSI/ASME/A197 DIN1692 |
| Standard: | British Standard American Standard DIN Standard |
| Size: | 1/4” – 6” as per ISO49, ANSI/ASME B16.3, DIN2950 |
| Threads: | ISO7/1 ANSI/ASME B1.20.1 DIN2999 |
| Tensile Strength: | ≥33kg/mm2 |
| Elongation: | ≥8% |
| Hardness: | ＜HB150 |
| Test Pressure: | 2.5MPA(25KG/CM2) |
| Working Pressure: | 1.6MPA(16KG/CM2) |
| Shape: | Banded. Beaded. Plain |
| Surface: | Hot dipped galvanized. Black |

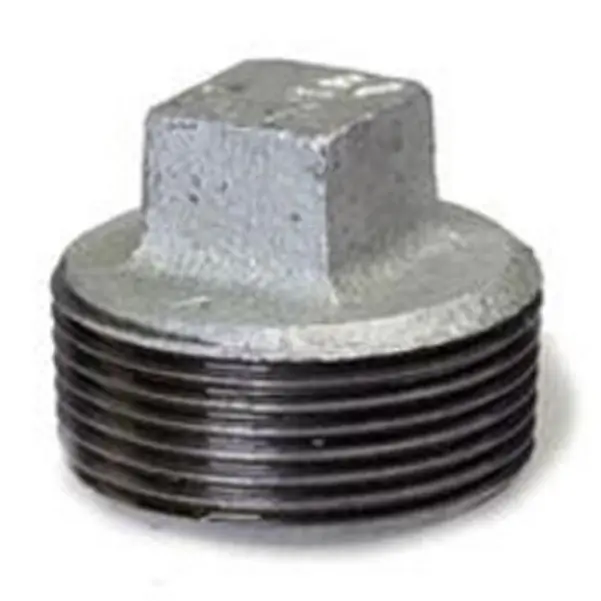

| Model: | Elbow, Tee, Socket, Nipples, Union, Bushing, Plug, Caps, Bends, Cross, Round Flange, Reducing Elbow, Reducing Socket, Reducing Tee, Reducing Nipple, Crossover etc. |
| Connection: | Threads(male and female) |
| Application: | Suitable for pipe line connect of water, oil, air, steam, gas. |
| Certificated: | ISO9001, CIQ, ITS, SGS, BV, CCIC. |
| Packing: | Export Carton (+ Pallets if need), Double woven bags. |
| Shipment time: | Within 30days after receiving the deposit. |
| MALLEABLE IRON PIPE FITTINGS DETAILS | ||
| Material | Black heart malleable iron | |
| DIN Standard | Threads : ISO 7/1 | |
| Dimension : ISO 49, DIN2950, EN10242 | ||
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) | |
| Physical property | Tensile strength >>=350mpa, Elongation >=10%, Hardness <=150HB | |
| Testing pressure | 2.5MPa | |
| Working pressure | 1.6MPa | |
| Type | 1. Beaded with ribs. | |
| 2. Beaded without ribs. | ||
| Size | 1/8″,3/8″,1/2″,3/4″,1″,11/4″,11/2″,2″,21/2″,3″,4″,5″,6″. | |
| Surface | Ø Galvanized | |
| Ø Normal black/Shining black | ||
| Series | Heavy, Standard, Medium, Light | |
| Model | Elbows, Tees, Crosses, Bends, Unions, Bushings | |
| Lateral Y Braches, Sockets, Nipples, Hexagon/Round | ||
| Caps, Plugs, Locknuts, Flanges, Side Outlet Tees | ||
| Side Outlet Elbows, etc. | ||
